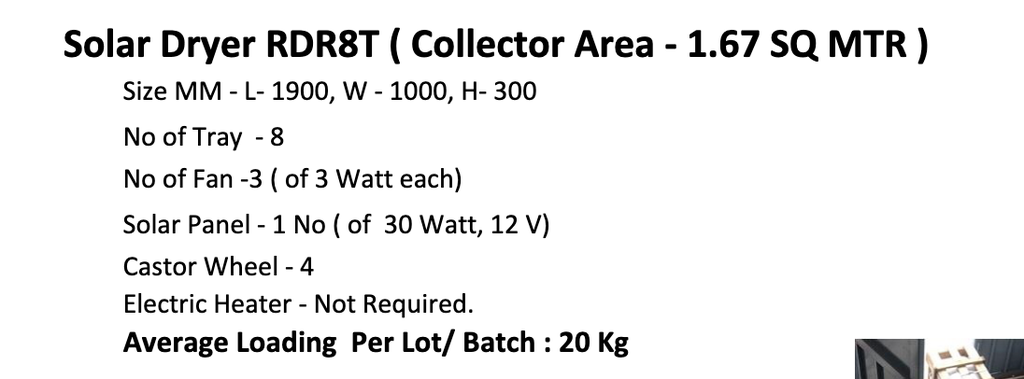

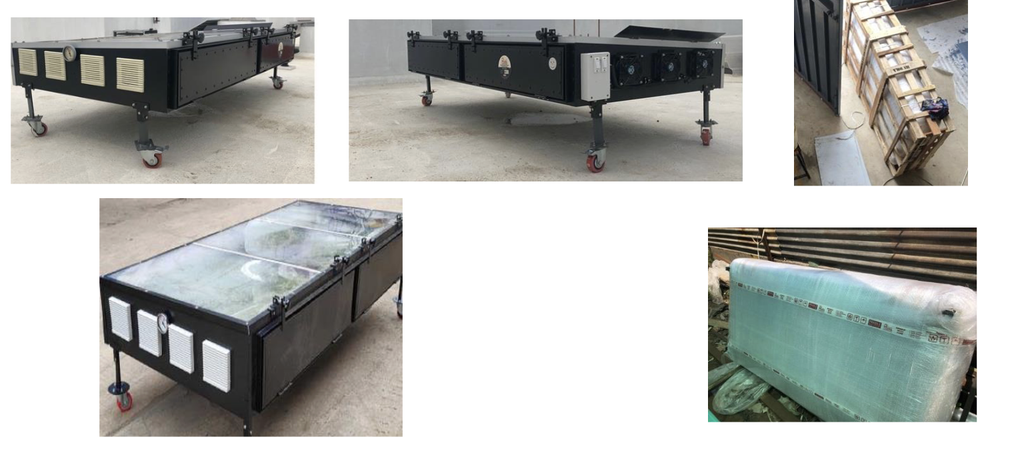

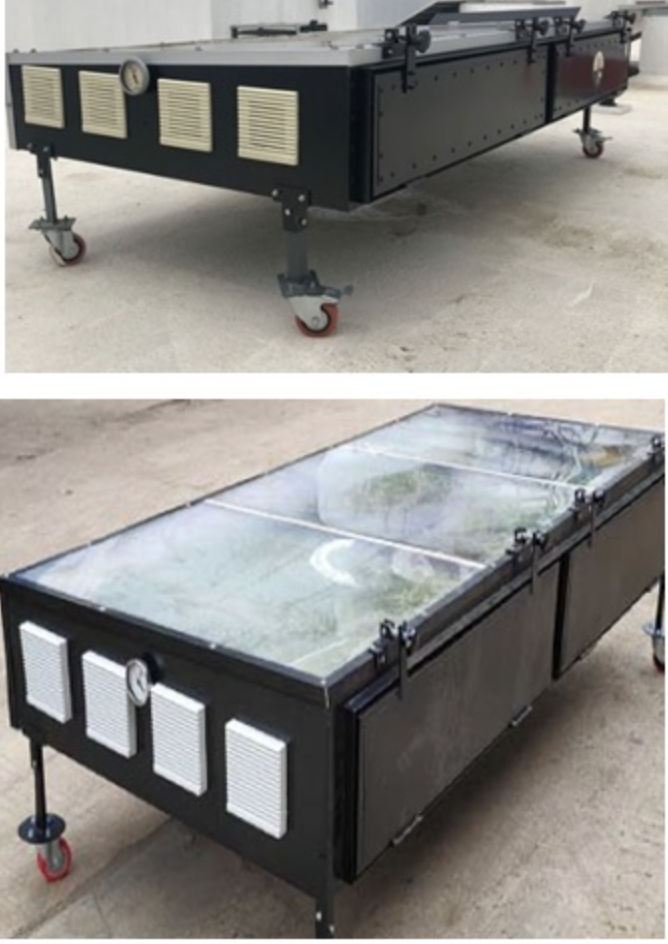

Solar Dryer RDR8T 20kgs Capacity

The Complete dryer set comes ready to use type. You have to Just fix Support Legs and Castor Wheel after unboxing and one can start Drying in just 15 mins.
No installation support. No technical know how Required any person can do installation In Just 10 mins
The complete set is maintenance free only the fan parts may have problem in future that can be easily
replaced with new one in just 5 mins and total life of the structure is around 10 years.
Total Average Moisture removal rate per tray 600 to 800 gms per one solar day, in Upper layer and 300
to 400 gms per one solar day in lower layer with solar thermal efficiency of around 65 %. This drying rate may vary
due to geographical location, seasonal variation, particle size, relative humidity, and other environmental factors.
Dryer Type : DIRECT CABINET TYPE FORCED CONVECTION MODULAR DRYERS
Heating Mode: DIRECT RADIATION, CONDUCTION AND FORCED CONVECTION ALL THREE MODES OF HEATING
Working Principle: LIGHT ENERGY TO HEAT ENERGY USING GREEN HOUSE EFFECT FOR HEAT TRAPPING CONDUCTION
HEAT TRANSFER USING METAL AND REMOVING MOISTURE USING FORCED CONVECTION
Main Body Material: FOOD GRADE ALLUMINIUM SHEET METAL AND ALUMINIUM SECTION FABRICATED
Coating On Main Body: FOOD GRADE SPECIAL PURPOSE POWDERCOATING
Top Cover : DOUBLE UV FILTER UNBREAKABLE SOLID POLY CARBONATE SHEET 1.5 MM
Manufacturing Process: CNC LASER CUTTING AND CNC BENDING MACHINE
Tempetarure Range: 50 TO 80 DEG CEL
Tray Size: L-32" X W-16" X H-1.25"
Av Loading Capacity of Tray : 2.5 KG PER TRAY RANGE VARIES BETWEEN 1 KG TO 5 KG PER TRAY DEPENDING
UPON PRODUCT WEIGHT/VOLUME
Tray Material : FOOD GRADE ALLUMINIUM (STANDARD)
Tray Type: PERFORATED 3 MM HOLES
Coating On Tray : FOOD GRADE SPECIAL PURPOSE POWDERCOATING ON ALUMINIUM TRAY
Environmental Protection: DUST PROOF , INSECT PROOF, WATER PROOF, RUST PROOF, RODENT PROOF AND
COATING ON SURFACE FOR LONGER LIFE
All hardware: SS 304
Fan Type: 12 V DC BRUSHLESS AXIAL FANS
Support Structure : IN CASE OF 25 AND 50 KG MODEL MS FABRICATED, NOT REQUIRED IN LOWER VERSION,
SUPPORT LEGS MADE OF MS FABRICATED
