Water Pump Diesel 3" Flex Drive 6m Hose

Product Description

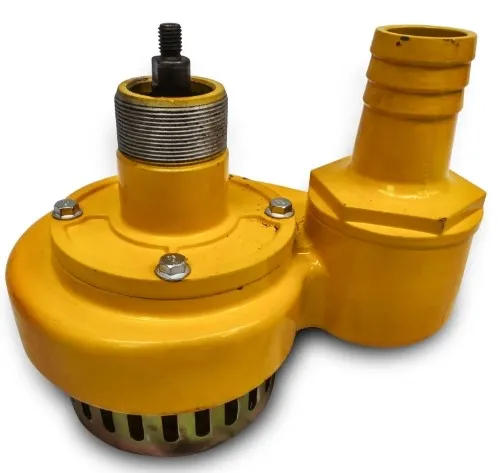

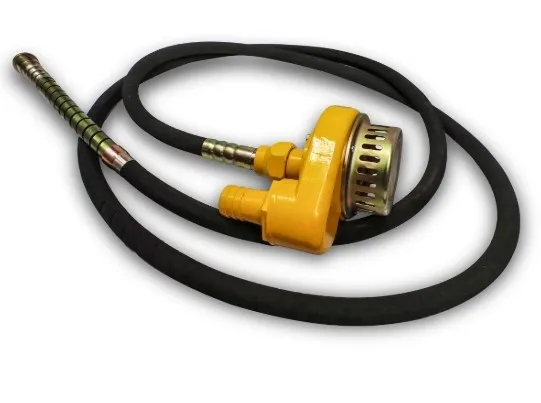

This system is a 3-inch heavy-duty diesel flexible shaft drive water pump set. It combines a reliable 5.0 HP Kama 173F diesel engine with a long 6-meter flexible drive shaft attached to a portable 3-inch pump head.

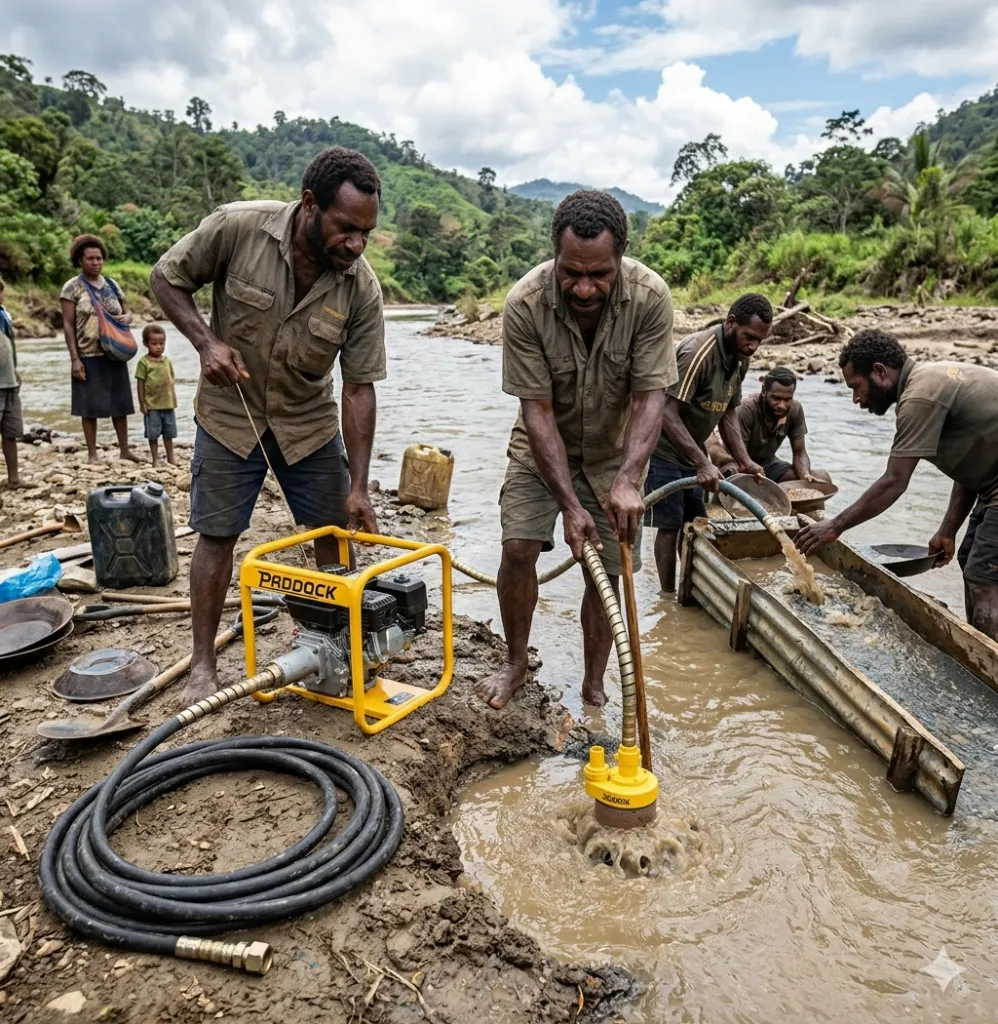

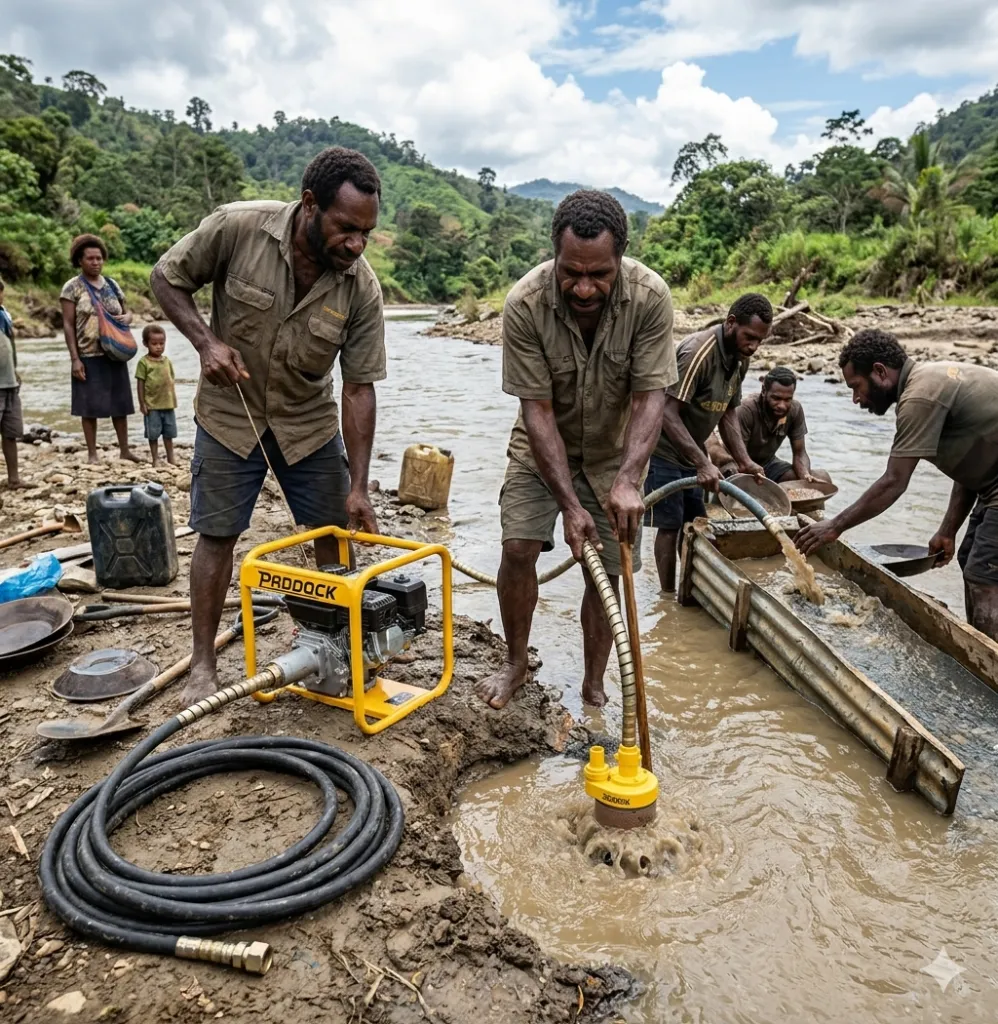

Unlike traditional rigid, frame-mounted pumps, this specialized configuration places the heavy engine safely on dry land or a vehicle bed, while the submersible, lightweight pump head is dropped directly down into deep trenches, rivers, pits, or tight spaces. This makes it an ideal tool for demanding dewatering applications across agriculture, construction sites, and remote utility work.

Product Specifications
  • Product Type: Water Pump Set Diesel type 3inch
  • Pump Head Size: 3inch
  • Length of Shaft: 6m
  • Hose Outside: 36mm
  • Hose Inner Dia: 20mm
  • Pump Lift: 16m
  • Flow Rate: 20~28cbm/h
  • Head Material: Aluminum with spray paint
  • Coupling: Australia-type
  • Engine: Kama 173F Diesel 5.0HP
Key Factors (Specifications)
  • High Flow & Lift: Delivers an impressive water transfer volume of 20 to 28 cubic meters per hour (cbm/h) with a 16-meter maximum pump lift.
  • Long-Reach Submergibility: Equipped with a rugged 6-meter flexible drive shaft that allows the pump head to work far below the engine's position.
  • Premium Materials: Built with a corrosion-resistant aluminum pump head finished with spray paint to withstand harsh environments.
  • Standardized Hose Fittings: Fits heavy-duty 36mm outer diameter / 20mm inner diameter industrial hoses.
  • Australia-Type Coupling: Utilizes a secure, easy-to-use, and globally recognized standard connector style.
Primary Benefits
  • No Priming Required: Because the flexible shaft allows you to drop the actual pump head directly into the fluid source, it bypasses the need for manual suction priming.
  • Diesel Engine Fuel Efficiency: The 5.0 HP Kama diesel engine offers higher torque and dramatically better fuel efficiency than equivalent gasoline pumps during long hours of continuous operation.
  • Ultimate Safety & Versatility: It keeps the electrical and heavy mechanical engine frame away from wet, unstable mud, slippery banks, or toxic trench floors.
  • High Portability: The system breaks down into three distinct cartons under 26 kilograms each, making it easy to transport to remote fields or rugged jobsites in standard vehicles.
Setup & Operation FAQ
  • Does this pump require manual priming before use?
    No. Because the flexible shaft allows the actual pump head to be fully submerged directly into the water source, it is inherently self-priming. You do not need to add water to a suction housing like traditional frame-mounted pumps.
  • Can this pump handle dirty or muddy water?
    Yes. This type of flexible shaft pump is built for heavy-duty dewatering, including muddy construction pits, trenches, and agricultural drainage. However, avoid pumping highly dense sludge, large stones, or chemicals that can corrode the aluminum casing.
  • Can I run the pump dry if the water source runs out?
    No. Avoid letting the pump run dry for extended periods. The internal components, particularly the mechanical seal, rely on the surrounding water for cooling and lubrication. Running it dry can cause severe overheating and seal damage.
  • What fluids should absolutely NOT be pumped?
    Never use this system to pump flammable, volatile liquids (like gasoline or solvents) due to fire risks, nor should you pump hot liquids exceeding 50°C.
