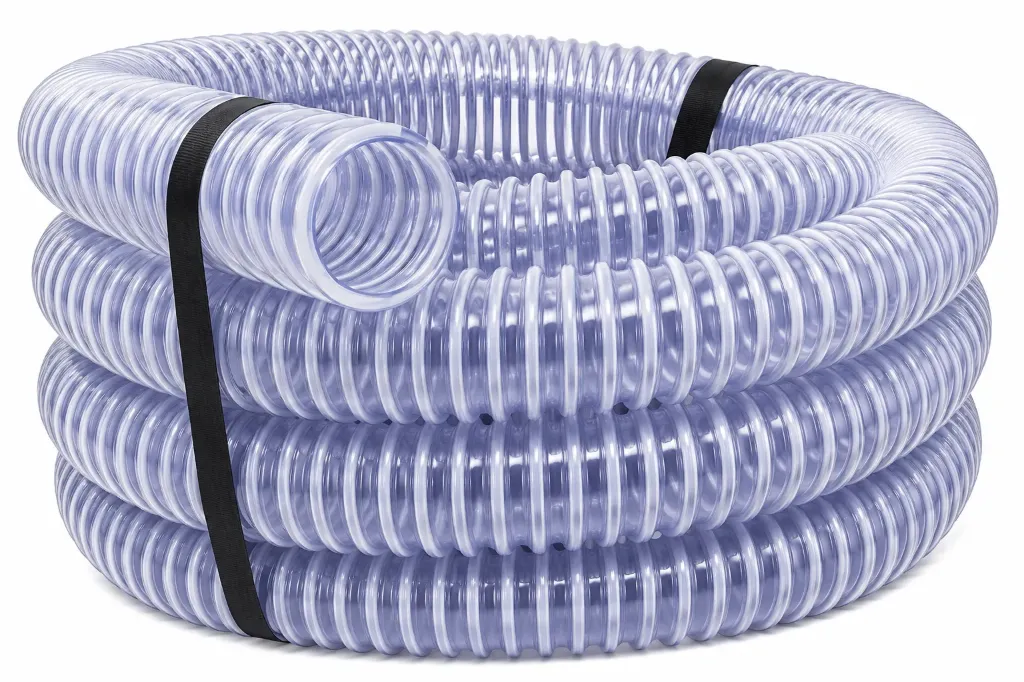

Water Pump Hose Inlet 6"

A 6-inch (150 mm) water pump inlet hose is designed for heavy-duty commercial dewatering, industrial fluid transfer, and high-volume agricultural irrigation. Because water pump dimensions follow standardized industrial classifications, the hose sizing and installation must adhere to strict plumbing rules to ensure maximum pump output and prevent machinery damage.

Key Dimensions of a 6" Water Pump Inlet Hose

Inside Diameter (ID): Exactly 6 inches (152.4 mm). This internal bore size determines the volume of water the hose can transport without restriction.
Outside Diameter (OD): Typically ranges between 6.50 inches and 6.85 inches (165 mm to 174 mm) depending on the thickness of the hose wall, reinforcing wire, and material used (PVC vs. rubber).
Fittings and Connections: Most 6" inlet hoses come equipped with heavy-duty 6" Cam and Groove (Camlock) fittings or 6" Bauer-style ball and socket couplings to connect securely to the pump's male threaded or flanged intake.

Frequently Asked Questions (FAQs)

1. What type of hose must be used on a 6" water pump inlet?

You must use a suction hose (also known as a hard-suction or drafting hose) rather than a lay-flat discharge hose. Inlet hoses are constructed with a rigid PVC or steel wire helix embedded inside the walls. This reinforcing framework prevents the hose from collapsing under the intense negative pressure (vacuum) generated by the suction side of the pump.

2. Should my suction pipe or hose be larger than the 6" pump inlet?

Yes. According to industrial Suction Pipe Sizing Rules, the suction line diameter should ideally be one size larger than the pump inlet port. For a 6-inch pump inlet port, using an 8-inch suction hose reduces friction losses, maximizes flow rates, and keeps the water velocity within a safe, efficient threshold.

3. What happens if the inlet hose is too small for the pump?

Using an undersized inlet hose causes cavitation. Cavitation happens when a pump attempts to draw more water than the inlet hose can physically feed into it. This restriction forms low-pressure air bubbles that violently implode inside the housing, destroying the impellers, check valves, and internal seals.

4. How long can a 6" water pump inlet hose be?

The intake line should be kept as short and direct as possible, ideally under 10 to 20 feet. Long suction lines create high friction resistance, making it much harder for the pump to prime and pull water effectively. Additionally, you should maintain a straight run of hose entering the inlet that measures at least 5 to 10 times the pipe's diameter to prevent water turbulence.

5. Is it normal for air to get trapped in the inlet hose?

No. The suction hose must be completely airtight and free of leaks for the pump to operate properly. The hose should also slope continuously upward toward the pump intake without any dips, high points, or sharp bends. This specific positioning allows any air to escape freely into the pump casing rather than creating trapped air pockets that interrupt suction.
