Chaff Cutter Electric Machine 20-30cm 2.2kw 9ZT-0.6A

Product Description

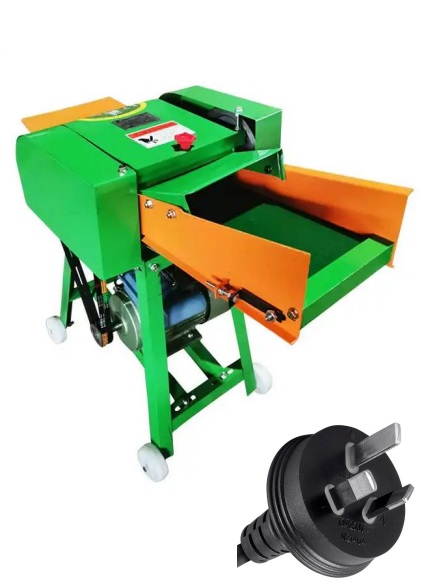

This specialized electric agricultural device chops, shreds, and processes various materials like fresh grass, dry straw, corn stalks, wheat forage, and silage into finely uniform pieces. It streamlines feed preparation for livestock including cattle, sheep, horses, rabbits, and ducks. The integrated conveyor belt mechanism enhances automation, allowing seamless input feeding without manual pushes near the hazardous slicing chamber.
Key Factors
  • Power Source Configuration: Driven by a high-efficiency 2.2 kW to 3.0 HP electric motor running on single-phase 220V power, optimizing performance for general domestic or farm outlets.
  • Cutting Mechanism Layout: Built with multiple heavy-duty manganese steel blades engineered for clean chopping and extended durability against rigid materials.
  • Feed System Design: Features an wide automated conveyor tray that safely moves materials into the roller blades.
  • Mobility Infrastructure: Supported by a robust steel frame structure fitted with bottom wheels for easy transit and positioning around the property.
Key Benefits
  • Boosts Feed Digestibility: Slices stalks neatly to ensure livestock digest nutrients easily and waste less feed.
  • Enhanced Operator Safety: The prolonged intake tray and conveyor system maximize the physical distance between hands and moving blades.
  • Dual Wet & Dry Capability: Seamlessly transitions between tough dry straw and moisture-dense fresh grass without clogging up internal systems.
  • Compact, High Output Performance: Compact dimensions easily fit smaller workspaces while still outputting massive quantities of forage per hour.
Technical Specifications
The standard metrics for this class of machine typically include:
ParameterSpecification
Model Number Reference9ZT-0.4 / WY-9ZT-0.4A-2
Motor Power Configuration2.2 kW – 3.0 kW (approx. 3 HP)
Operational Voltage220V / 380V (Single / Three Phase options)
Production Capacity1,000 kg – 1,800 kg per hour (varies by material)
Blade Structural MaterialHeavy-duty Manganese Steel
Adjustable Slicing Length1 cm – 3 cm (variable gear adjustment)
Total Framework WeightApprox. 40 kg – 55 kg (excluding motor)
Approximate Dimensions1100 mm × 420 mm × 780 mm
Frequently Asked Questions (FAQ)
Q: Can this machine process thick crops like corn stalks or sorghum?
A: Yes. The manganese steel blade mechanism cuts through both green and dry corn stalks, sugarcane tops, and similar thick forage items effectively.
Q: How do you adjust the finalized size of the chopped grass?
A: Slicing lengths can typically be toggled between 1cm and 3cm by shifting the mechanical gear transmission lever situated inside the primary cover panel.
Q: What maintenance routines are recommended?
A: Periodically check blade sharping, oil the internal gears and roller chain assemblies weekly, and clear any sticky leftover green pulp out of the internal housing after operation.
K 1,745.00 K 1,745.00 (Tax excluded)
K 1,454.45 (Tax excluded)
