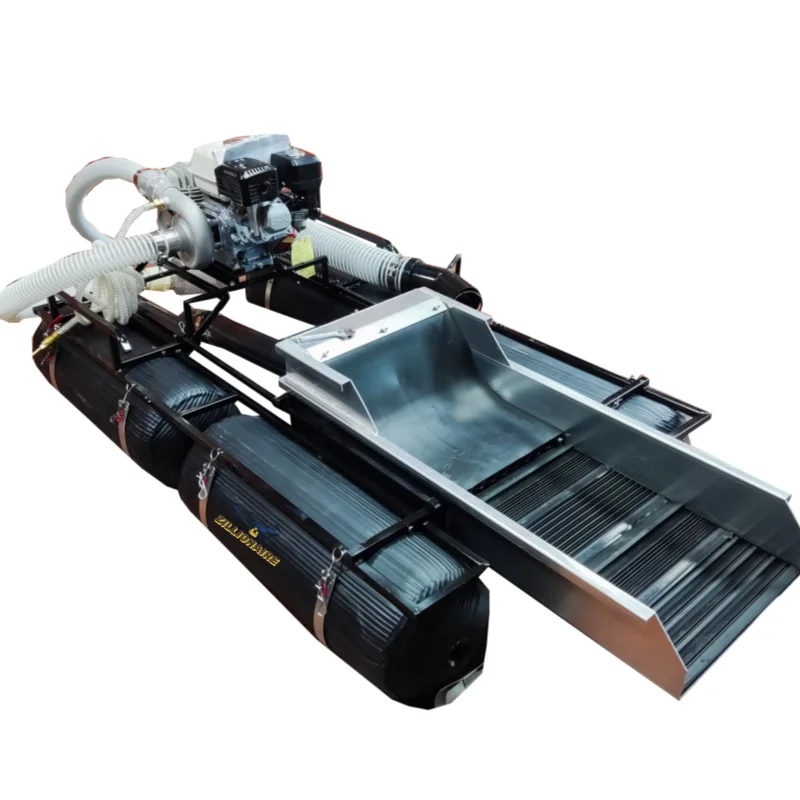

Gold Dredge 6" 6211M

 A 6-inch gold dredge, specifically the 6211M model, which is designed for portability and performance in gold mining operations. This type of dredge is equipped with a twin GX200 Honda engine assembly and a 263 compressor, which provides the power and air supply needed for underwater dredging and diving. The dredge features a sluice box for separating gold from sediment, and it is mounted on inflatable pontoons for buoyancy. It is designed to be easily disassembled for transport, making it suitable for use in remote locations. The 6211M model is capable of moving large amounts of material, enhancing the fine gold recovery rate due to its uniquely designed sluice.

◆ Power: Honda 6. 5hp gasoline engine*2 Set GX200

◆ Water pump: DW180*2 Set

◆ Sand suction hose: 6 inches*8m

 ◆ Oil-free air compressor: T80*1 Set

◆ Fuel consumption: 3.4L/hour

◆ Working depth: Up to 8 meters

◆ Working capacity: 12m³/hour

◆ Sluice box size: l.71m*0.55m

◆ Outer dimensions of floating body: 2.7m*I. 3m*0.5m

◆ Net weight: 270KG

◆ Water flow: 160m³/hr

◆ Package size: 1.9m*1.2m*1.2m

◆ Lift head: 46m

◆ Package weight: 340KG
